MICROTHERMICS LAB HTST/UHT PASTEURIZER

MICROTHERMICS LAB HTST/UHT PASTEURIZER

$153.750 (USD)

for Complete System w/ Homogenizer & Clean Fill Hood
oLlamar +13034232332

Descripción

Complete MicroThermics Electra Series UHT/HTSTLab Food & Beverage Product Development System

Comprised of:

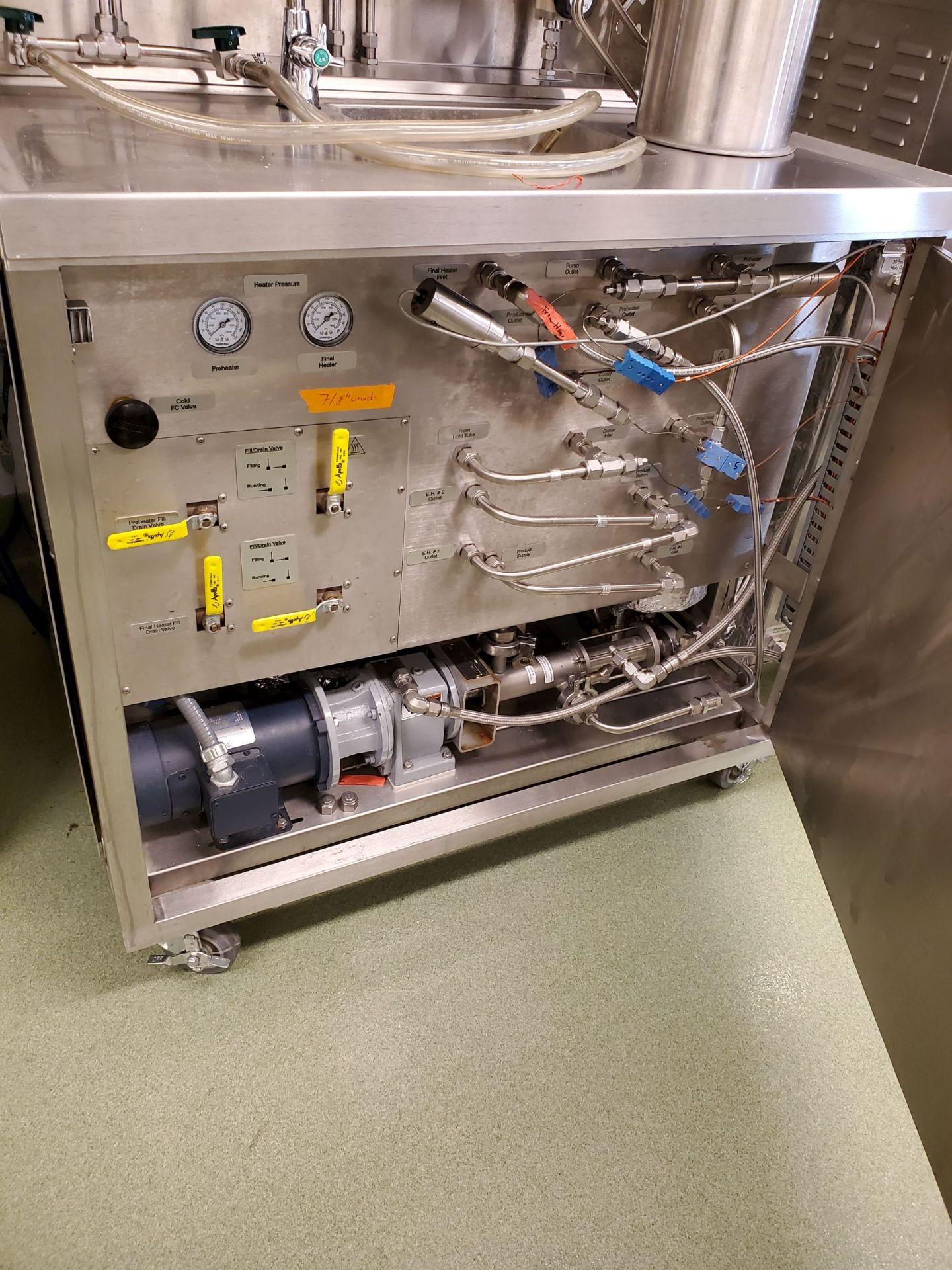

MicroThermics Model 25HV Hybrid Laboratory Pasteurizer Cabinet

 - Serial Number: 3216184

 - Last Used for Nutritional Beverages

 - Approx 1 liter/min Continuous Flowrate

 - Central Connection (Jumper) Panel for a Variety of Hold Times

 - Temperatures up to 300 degF

 - Electrically Heated Hot Water Loop

   (No need for a Steam Generator)

 - Standalone Honeywell Temperature Controllers

 - External Coolant and City Water Connections

 - Seepex Model MDC Progressive Cavity Timing Pump

 - Power Req: 115V/1Ph/60Hz and 460V/3Ph/60Hz


GEA Niro - Soavi High Pressure Homogenizer

 - Model NS2006H

 - Serial No: 4376

 - Year of Mfr: 2002

 - 2-Piston Monoblock Pressure Head

 - Max Homogenizing Pressure: 400 bar/5800 PSI

 - Max Rated Flow: 200 LPH

 - Motor: 7.5 HP, 460V/3Ph/60Hz

 - Allen-Bradley VFD w/ Keypad for Speed Control

 - 2-Stage Manual Homogenizing Valve Assembly

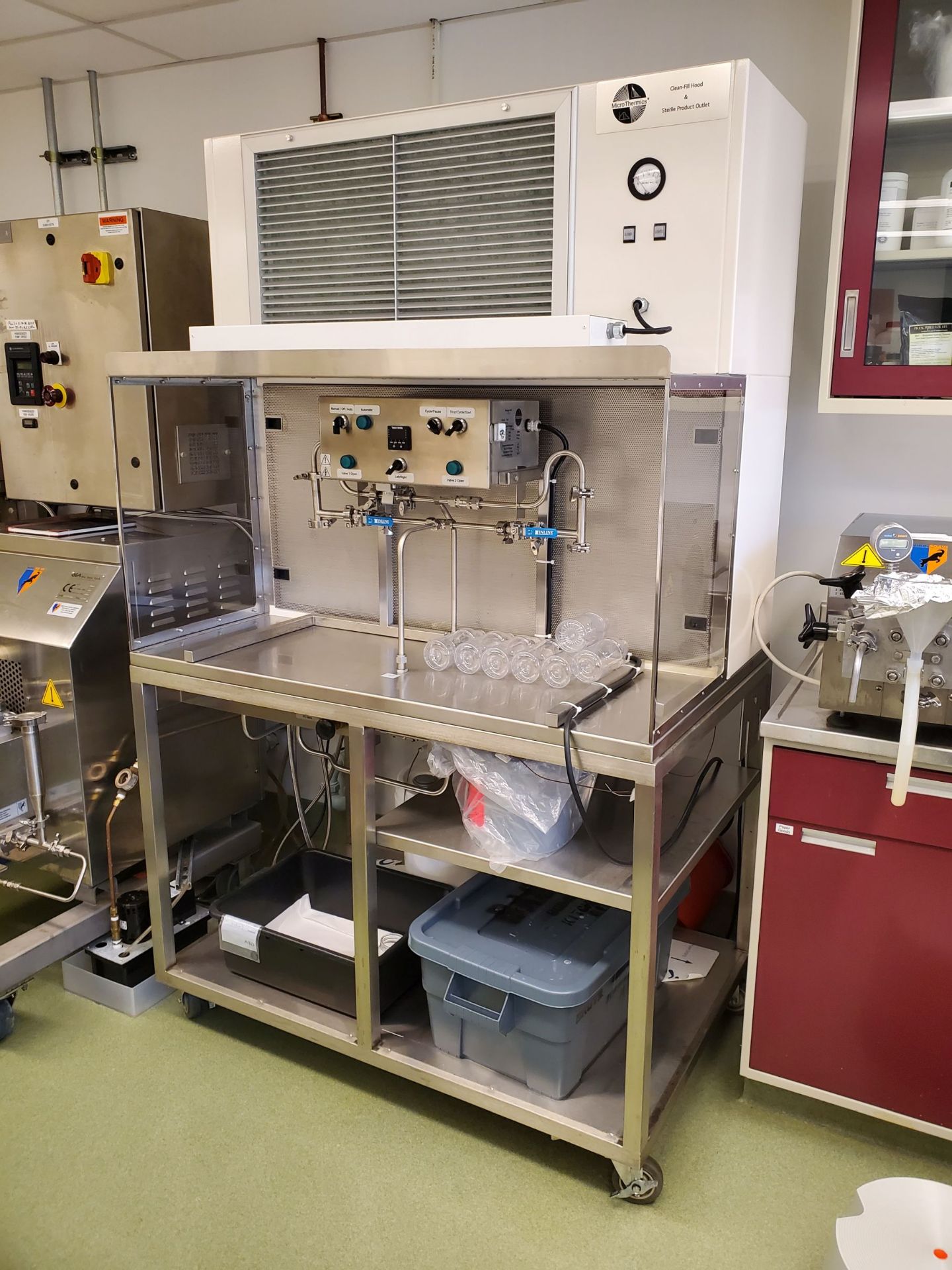

MicroThermics Clean-Fill Hood And Sterile Product Outlet

 - Serial Number: 3216605.2

 - Model AFC (Automatic Filling Control)

 - Year of Mfr: 2012

 - Laminar Flow Workstation Model EL422T-ST/SP

 - Power Req: 240V/1Phase/60Hz


System will arrive Professionally Tested and READY TO INSTALL

 - Pasteurizing System Pumps/Valves/etc to be rebuilt by our qualified mechanics. All seals & fittings leak tested prior to shipment.

 - Lab Pasteurizing System to be fully inspected & tested by our professional HTST engineering team.

 - Homogenizer to be serviced/tested by our crew of professional homogenizer mechanics


Also Available:

 MISC-1554 - GEA Niro - Soavi NS1001L2K Benchtop Homogenizer

 MISC-1555 - Lauda WK 1200 Circulation Chiller

Especificaciones

FabricanteMicrothermics
ModeloELECTRA HV25 HYBRID
CondiciónReformado
Número de Serie3216184
Número de StockMISC-1553
FlowrateApprox 1 liter/min
Max TemperatureApprox 300 degF
Overall dimensions46"W x 33"D x 65" Tall (Main Cabinet)
